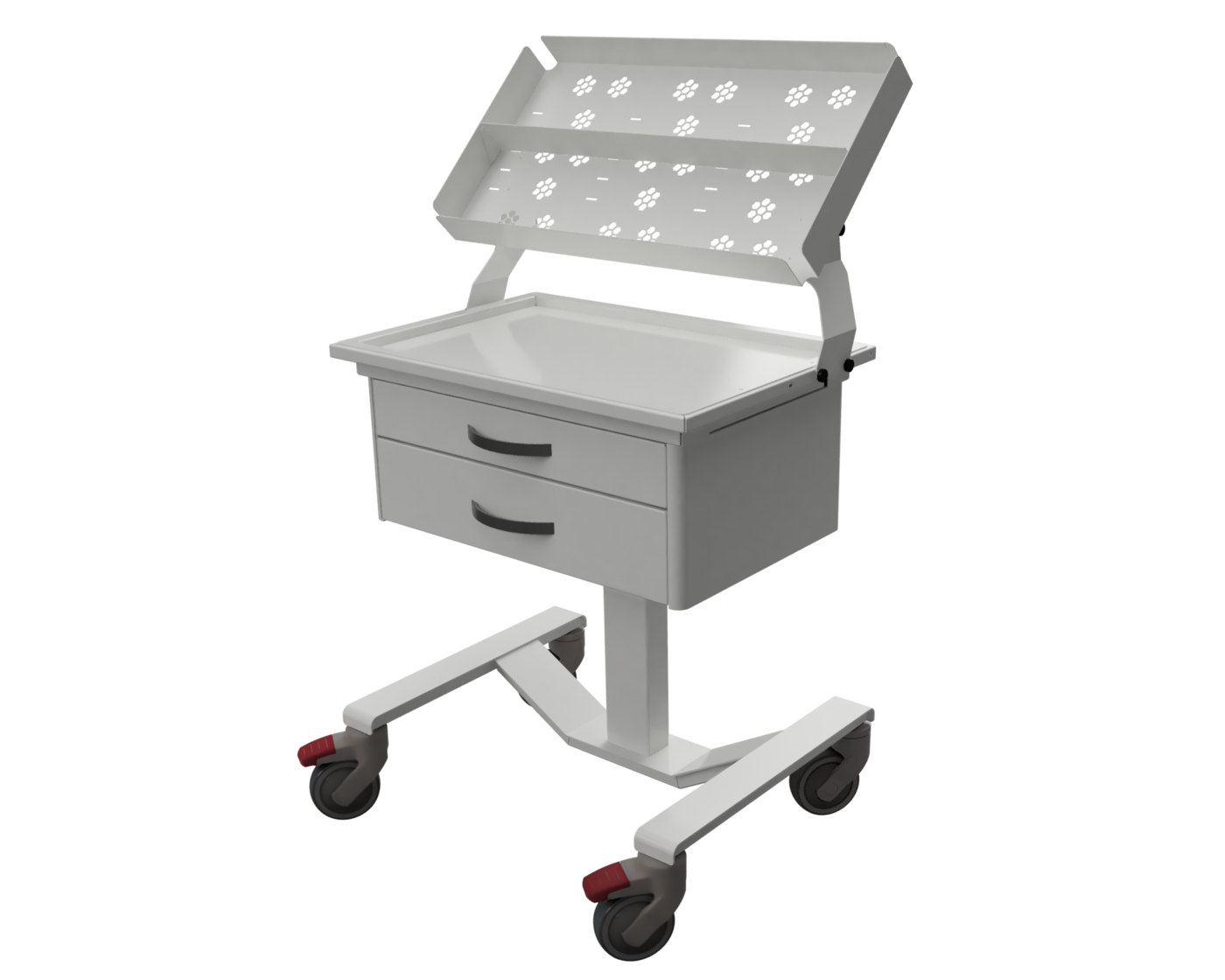

model 76100

Aava-phlebotomy cart

› W 590mm/ D 400mm / H 1050 mm

› Height of the table top 700 mm

  • Tube shelf: yes
  • Pull-out Drawers: 2

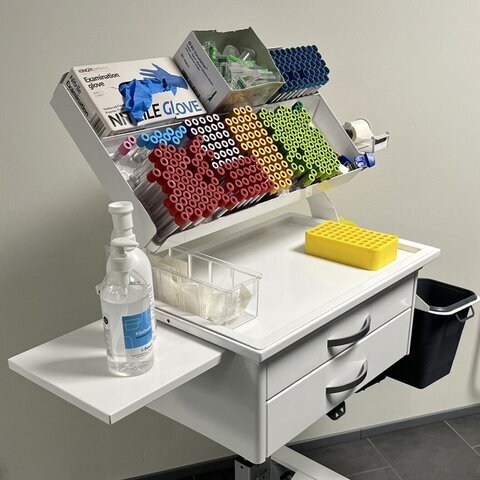

The new Aava-phlebotomy cart is small and light to move. Everything you
need is within arm’s reach, reducing the amount of twisting and turning you
need to do to a minimum. The racks for disinfectant bottles, clinical waste
containers, and rubbish containers can be placed freely all around the cart,
meaning that you can adapt it to best suit your tasks.





Technical Specifications ›

Interested in this product?

Select accessories for quote ›

Request a quote ›

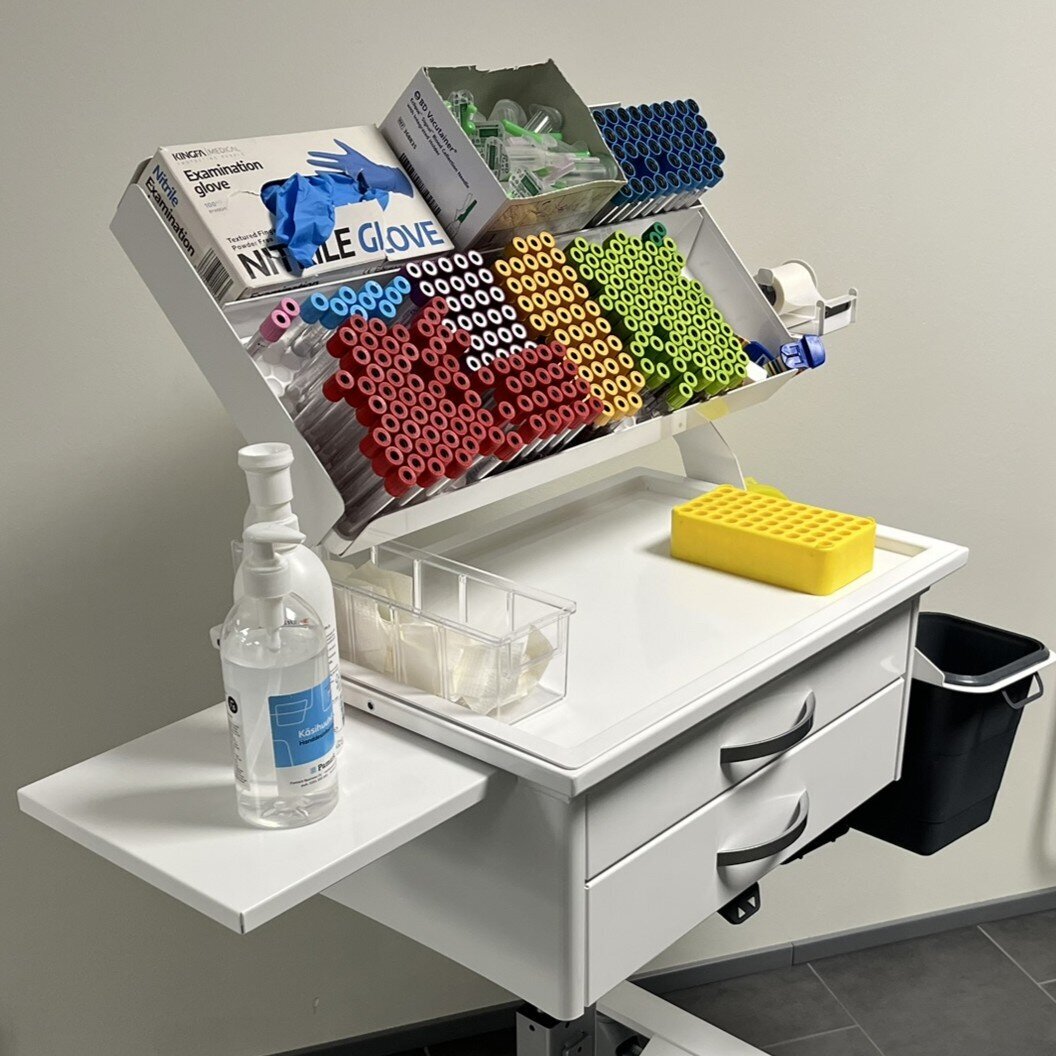

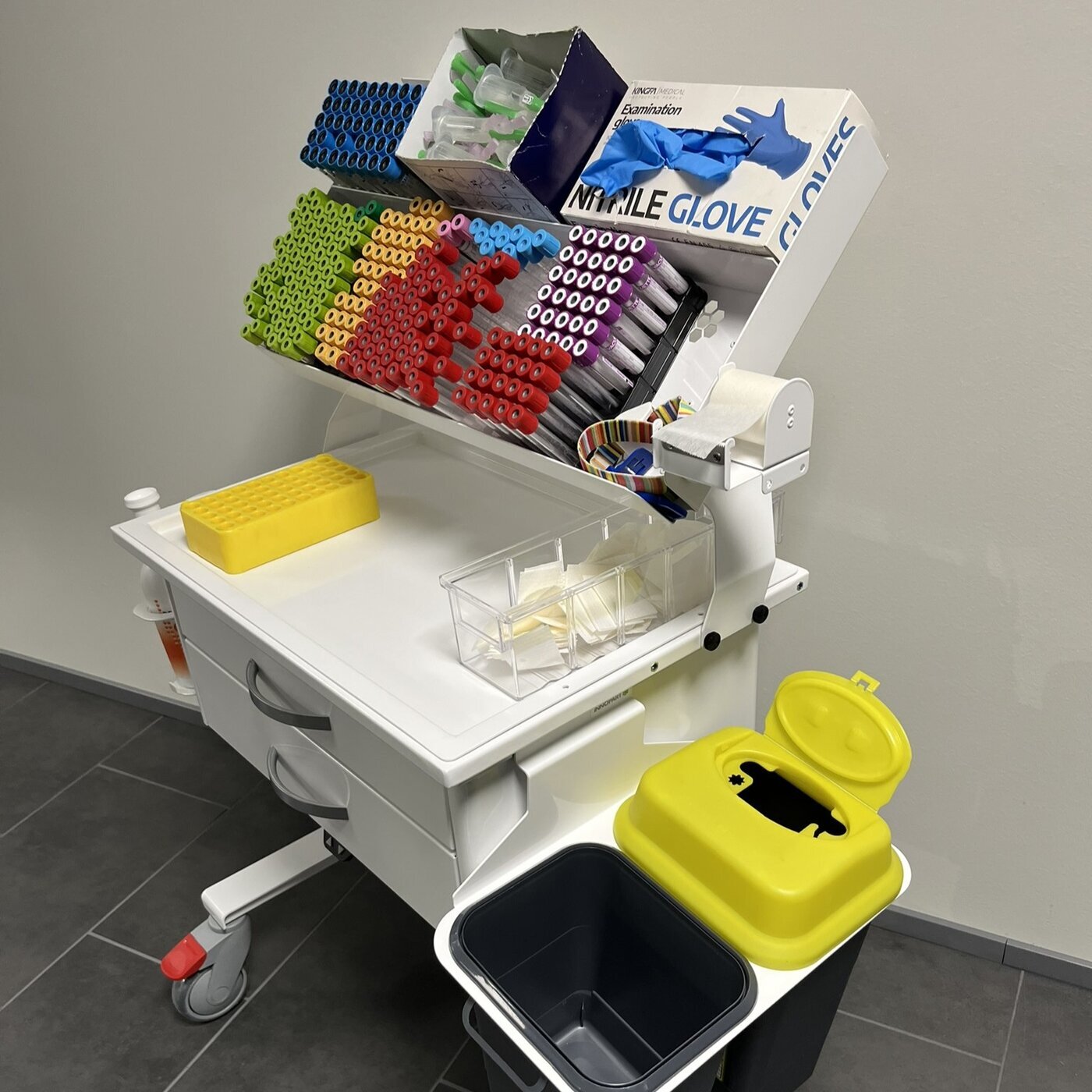

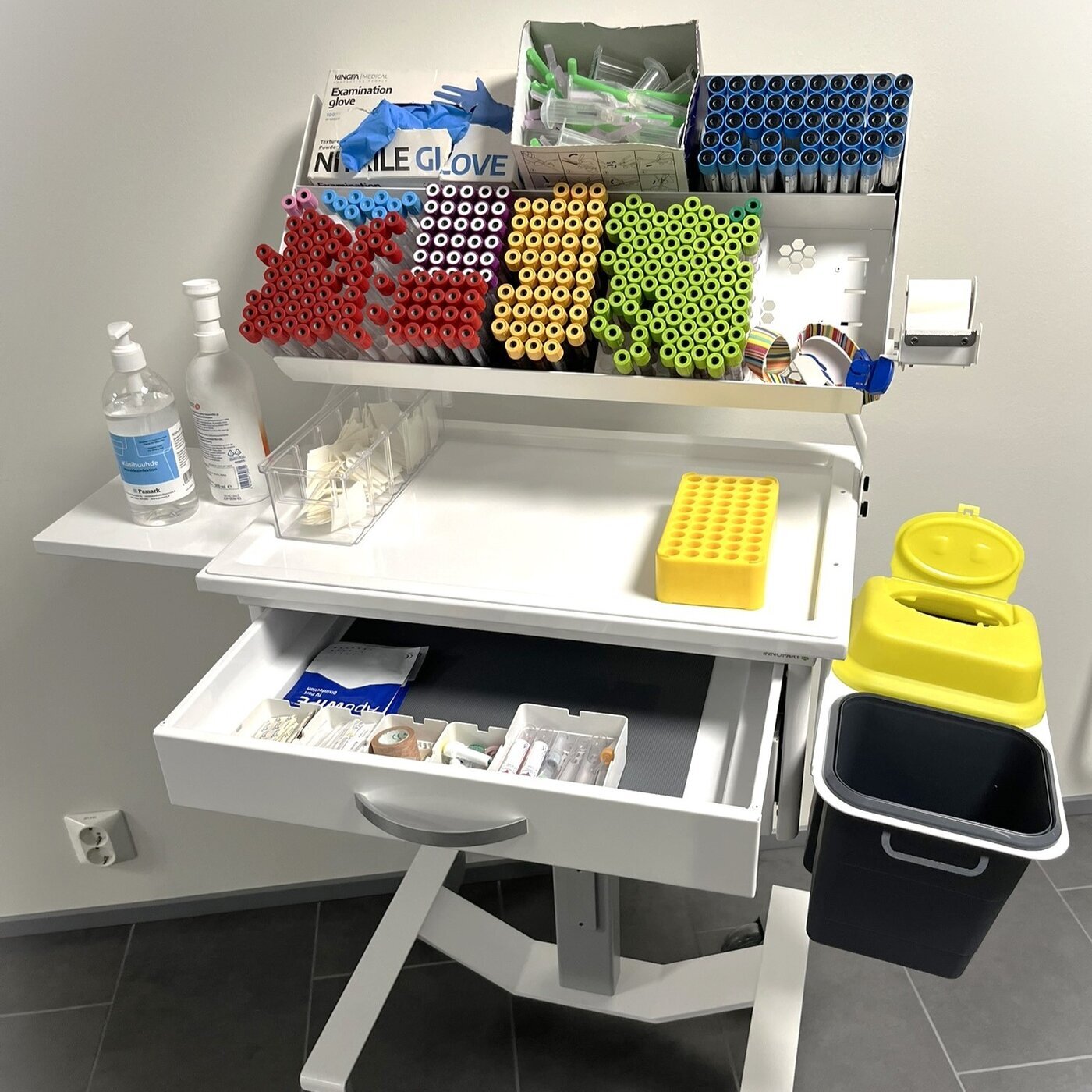

Everything has its own place, and items are ergonomically within reach.

A Retractable writing surface can be pulled to either the right
or left side of the phlebotomy cart.

The tube shelf has a movable divider that allows the tube shelf
to be adjusted to fit the tube packages in use.

Technical Specifications and Dimensions



Model 76100 features:

  • Width 590 mm, depth of the tabletop 400 mm.
  • 76100 cart without a height adjustment.
  • The height of the table top is 700 mm and the height with
    a tube shelf is 1050 mm.
  • Wheel diameter 100 mm.
  • The tube shelf has a movable divider that allows the tube shelf
    to be adjusted to fit the tube packages in use.
  • The angle and the depth of the tube shelf are adjustable.
  • The 1st drawer: W 470 / L 300 / H 80 mm
  • The 2nd drawer: W 470 / L 300 / H 100 mm
  • A Retractable writing surface can be pulled to either the right
    or left side of the phlebotomy cart.
  • Visible dimensions of the writing surface pulled to the right or
    left side of the cart: W 235 mm / D 245 mm.
  • The tabletop is a tray which can be detached and easy to
    wash.

Saves time



An Innopart product is an investment
that pays for itself quickly.



Here's how savings are created ›

Compatible Acessories

Holders for clinical waste and trash bins

Rack for two 5 & 7 liter clinical waste container (new Sharpsafe model)

Show more›

Rack for 5&7 liter clinical waste container includes:

  • Product number 60539
  • Dimensions of one hole: W 154,5 x D 189 mm
  • The clinical waste container is lowered into the rack on the lid
  • The rack is made for new Sharpsafe clinical waste containers 5l & 7l
  • Material: powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for 5 & 7 liter clinical waste container (new Sharpsafe model)

Show more›

Rack for 5 & 7 liter clinical waste container includes:

  • Product number 60541
  • Dimensions of one hole: W 154,5 x D 189 mm
  • The clinical waste container is lowered into the rack on the lid
  • The rack is made for new Sharpsafe clinical waste containers 5l & 7l
  • Material: powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack and rubbish container 10 liters

Show more›

Features:

  • Product number 60550
  • Includes the rack and a 10-liter waste container
  • Dimensions: W 240 x D 160 x H 390 mm
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for 10-liter container

Show more›

Features:

  • Product number 60531
  • Dimensions of the hole: W 192 x D 192 mm
  • The clinical waste container is lowered into the rack on the lid
  • Container shape: square
  • Different containers fit to the rack, for example: ABM Italia S.p.A. Nursy clinical waste container 10 liters and CS plus 10 liters
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for 2 or 3-liter clinical waste container

Show more›

Features:

  • Product number 60525
  • Dimensions of the hole: W 180 x D 100 mm
  • The clinical waste container is lowered into the rack on the lid
  • Container shape: rectangle
  • Different containers fit to the rack, for example Sharpsafe clinical waste container 2 and 3 liters
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for a 3–9 liter clinical waste container

Show more›

Features:

  • Product number 60526
  • Dimensions of the hole: W 154 x D 154 mm
  • The clinical waste container is lowered into the rack on the lid
  • Container shape: square
  • Different containers fit to the rack, for example:
    • Sarstedt Multi-safe euroMatic 3, 4, 6 and 7 liters
    • ABM Italia S.p.A. CS Plus clinical waste containers 5 & 6 liters
    • Sharpsafe clinical waste container 4, 7 and 9 liters
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for a 1,5–2 liter clinical waste container

Show more›

Features:

  • Product number 60552
  • Dimensions: W 255 x D 134
  • Container shape: rectangle
  • Different containers fit to the rack, for example Sarstedt multi-safe vario 1,5 l and 2 l
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for round clinical waste container

Show more›

Features:

  • Product number 60553
  • Diameter of the hole 127 mm
  • The clinical waste container is lowered into the rack on the lid
  • Container shape: round
  • Different containers fit to the rack, for example:
    • ABM Italia S.p.A. Dispo clinical waste container 1,5 l
    • Sarstedt Multi-Safe quick 1,5 l / 2,0 l / 2,5 l, Multi-Safe opti 1,7 l / 2,1 l / 3,0 l
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack and rubbish container 2 liters

Show more›

Features:

  • Product number 60564
  • Includes the rack and a 2-liter rubbish container
  • Dimensions: W 230 x D 90 x H 135 mm
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for 10 & 22 liter clinical waste container

Show more›

Features:

  • Product number 60532

  • Following clinical waste containers fit to the rack:

    • ABM Italia S.p.A. manufacturer's containers with a ready-made place for the rack hook

    • CS Plus clinical waste container 10 l and 22 l

    • Nursy clinical waste container 3, 5 and 10 l

  • Material: Steel painted with antimicrobial powder coating
  • Resistant to machine washing and disinfection
  • Compatible with products: Oiva, Keisi, and Husky
+ Select product

Rack for clinical waste container (145x210mm)

Show more›

Features:

  • Product number 60534

  • Rack is assembled to the large tube rack

  • The clinical waste container is lowered into the rack on the lid

  • Container shape: rectangle

  • Compatible with products: Keisi and Husky with a large tube rack
+ Select product

Rack for a 4–11 liter clinical waste container

Show more›

Features:

  • Product number 60535
  • Dimensions of the hole: W 260 x D 170 mm
  • The clinical waste container is lowered into the rack on the lid
  • Different containers fit to the rack, for example: SafeBOX 4, 6 and 11l
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for two 3–9 liter clinical waste containers

Show more›

Features:

  • Product number 60530
  • Dimensions of one hole: W 154 x D 154 mm
  • The clinical waste container is lowered into the rack on the lid
  • Container shape: square
  • Different containers fit to the rack, for example:
    • Sarstedt Multi-safe euroMatic 3, 4, 6 and 7 liters
    • ABM Italia S.p.A. CS Plus clinical waste containers 5 & 6 liters
    • Sharpsafe clinical waste container 4, 7 and 9 liters
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack for clinical waste container

Show more›

Features:

  • Product number 60533
  • Dimensions of one hole: W 134 x D 134 mm
  • The clinical waste container is lowered into the rack on the lid
  • Container shape: square
  • Different containers fit to the rack, for example:
    • ABM Italia S.p.A. waste containers CS 2 PLUS, CS 3 PLUS
  • Material: Antimicrobial powder coated steel
  • Withstands high washing temperatures (93°C) and disinfectant washing
  • Fits all our products
+ Select product

Rack and two waste containers

Show more›

Features:

  • Product number 60537

  • Includes the rack and two 10 liters waste containers

  • Dimensions: W 344 x D 264 x H 390 mm

  • Material: Powder coated steel

  • Withstands high washing temperatures (93°C) and disinfectant washing

  • Fits all our products

+ Select product
Holders for disposable gloves, hand sanitizer, and cleaning agent bottles

Rack for one bottle

Show more›

Features:

  • Product number 60560

  • Dimensions of the hole: W 75 x L 75 mm

  • The minimum heigt of a bottle: 100 mm

  • Material: Antimicrobial powder coated aluminium

  • Withstands high washing temperatures (93°C) and disinfectant washing

  • Fits all our products

+ Select product

Rack for two bottles

Show more›

Features:

  • Product number 60561

  • Diameter of one hole 75 mm

  • The minimum heigt of a bottle: 100 mm

  • Material: Antimicrobial powder coated aluminium

  • Withstands high washing temperatures (93°C) and disinfectant washing

  • Fits all our products

+ Select product

Rack for box of disposable gloves

Show more›

Features:

  • Product number 70500

  • Dimensions: 245 x 120 x 65 mm

  • Material: Antimicrobial powder coated aluminium

  • Withstands high washing temperatures (93°C) and disinfectant washing

  • Fits all our products

  • Material: Antimicrobial powder coated aluminium

  • Withstands high washing temperatures (93°C) and disinfectant washing

  • Fits all our products

+ Select product
Other accessories

70410 Tape roll holder

Show more›

Features:

  • Product number 70410.
  • Fixed with two magnets.
  • Suitable for mounting on the side of small and large tube racks, on the sides of phlebotomy carts and on the side of the 70003 extra shelf.
  • Tape roll width max. 20 mm.
+ Select product

Tape roll holder wide

Show more›

Features:

  • Product number 60542.
  • Fixed with two magnets.
  • Suitable for mounting on the side of small and large tube racks, on the sides of phlebotomy carts and on the side of the 70003 extra shelf.
  • Tape roll width max. 50 mm.
+ Select product

Small extra shelf

Show more›

Features:

  • Product number 70017
  • Additional shelf for tube mixer, phone and mobile printer
  • Dimensions W 210 x L 147 H 90 mm
  • The product is compatible with Oiva, Keisi, Husky, Onni and Ilona products
  • Material: Antimicrobial powder coated aluminium
  • Withstands high washing temperatures (93°C) and disinfectant washing
+ Select product

Additional level with magnetic clamping

Show more›

Additional level with magnetic clamping

  • Product number 70425
  • Dimensions W 143 x L 210
  • Product is suitable for attachment to tube racks and the sides of the Onni sampling cart.
  • Material: Painted aluminium
  • Withstands high washing temperatures (93°C) and disinfectant washing
+ Select product

Rack for sampling stickers, forms and phone

Show more›

Features:

  • Product number 70200
  • Rack for eg. telephone, sampling stickers and forms
  • Dimensions: W 190 x D 56 x 158 mm
  • One big locker and two smaller lockers
  • The divider can be removed, leaving only one large locker in the rack
  • Material: Antimicrobial powder coated aluminium
  • Withstands high washing temperatures (93°C) and disinfectant washing
+ Select product

Shelf bin crystal clear

Show more›

Features:

  • Product number 70015

  • Dimensions: W 90 x L 300 x H 82 mm

  • Material: Crystal clear polystyrene (PS)

  • Temperature resistance -40°C to + 55°C

+ Select product

Cross divider

Show more›

Features:

  • Product number 70016

  • Cross divider for product 70015/shelf bin

  • One 70015 shelf bin fits four cross dividers

  • With four dividers, the shelf box has five compartments, size of one compartment: 45 – 55 mm

  • Material: Crystal clear polystyrene (PS)

  • Temperature resistance: -40°C to +55°C

+ Select product

Holder for laptop

Show more›

Features:

  • Product number 60537
  • Compatible with: Ilona and Keisi sampling trolleys
  • Minimum laptop screen size: 25.4 cm (10″).
  • Maximum compatible laptop screen size: 55.9 cm (22″).
  • Height adjustment: 0 – 260mm
  • Rotation angle: 180°
  • Tilt angle: 0 – 30°
  • Depth: 570mm, Height: 260mm.
+ Select product

Mainostoimisto Semio
